미국유명 Maker의 Glass Grinding/Lapping/Polishing 기술
모델 nFocusTM Overarm Polishers

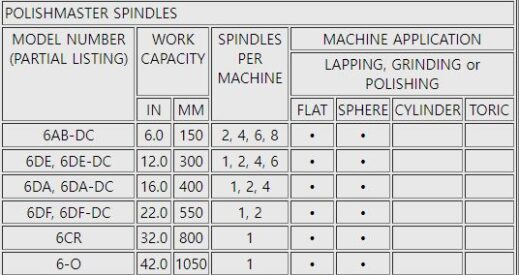

POLISHMASTER SPINDLES
For spherical and flat work in research or production environments:1″ to 50″ work capacity
- DC drives with independent SCR electronic speed controls
- Overhead operator controls with digital tachometer and timer on each station
- Stainless steel recirculating slurry system option
- Air polishing pressure system option
모델 nGauge Ring Lappers

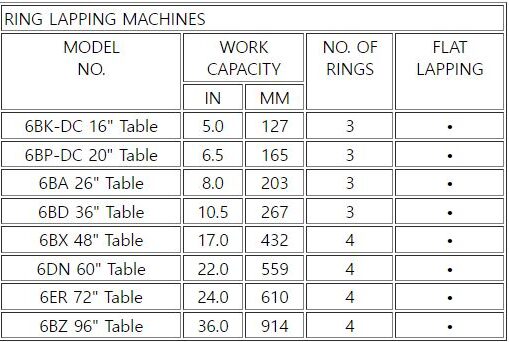

RING LAPPING MACHINES
From small precision to large production flat lapping:11 Models with table sizes ranging from 16″ to 96″ and work ring sizes from 5″ to 36″
- Variable speed table drive and powered ring drive options
- Quick change lapping tables of cast iron, cast aluminum or stainless steel
- Recirculating, peristaltic, and abrasive slurry spray system options
- Air polishing pressure system option
모델 nSpec Continous Polishers

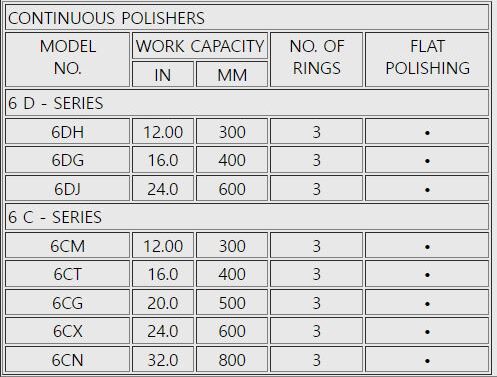

CONTINUOUS POLISHERS
For high precision flat polishing:10 models with table sizes ranging from 36″ to 96″ and work ring sizes from 12″ to 32″
- Granite table and lap conditioner
- Suspended work rings with independent drives on rings, table and conditioner
- High precision 6C-series with overhead ring drives
- Pneumatic counterbalance and powered pitch cutting tool options

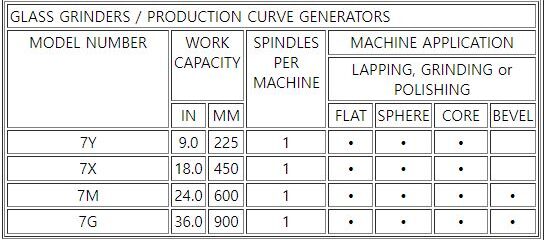

GLASS GRINDERS & PRODUCTION CURVE GENERATORS
High speed diamond grinders for curve generating, flat grinding, beveling, and edging glass:Five models to 36″ capacity
- Digital spindle height indicator and digital angle setting indicator standard for Models 7Y and 7X
- Stainless steel grind enclosure with safety interlocks
- Smooth pneumatic over hydraulic in feed system
- Wide range of diamond tooling available
모델 nLighten Glass Grinders
GLASS GRINDERS & PRODUCTION CURVE GENERATORS
High speed diamond grinders for curve generating, flat grinding, beveling, and edging glass:Five models to 36″ capacity
- Digital spindle height indicator and digital angle setting indicator standard for Models 7Y and 7X
- Stainless steel grind enclosure with safety interlocks
- Smooth pneumatic over hydraulic in feed system
- Wide range of diamond tooling available
