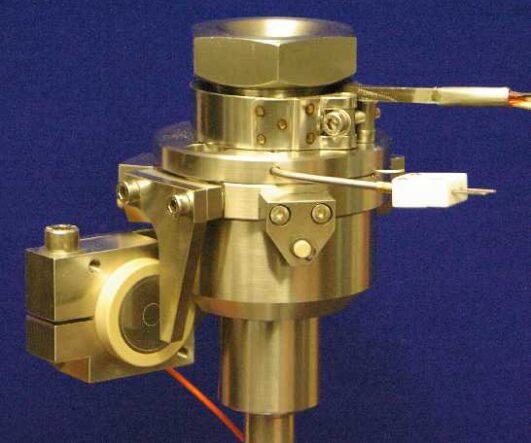

Test Assembly with Capacitance Probe

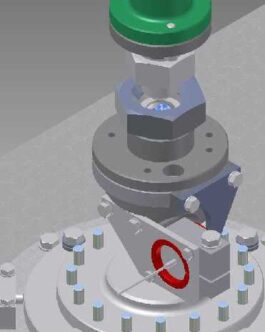

4BALL 시험장치

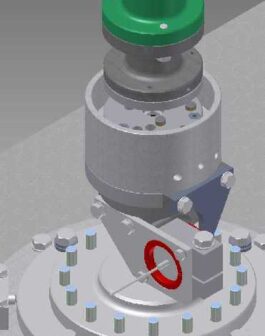

1 PIN OR 3 PIN 온 디스크 시험장치
Spirall Orbit 시험장치

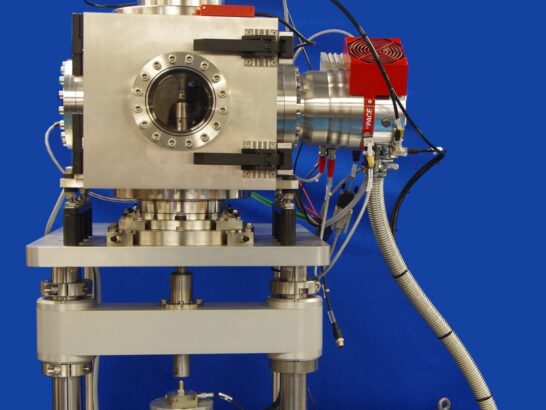

TE 91 초진공환경 회전식 마찰마모윤활 시험기기
Technical Specifications
Tribometer
Load: | 20 to 2000 N |
|---|---|
Rotational Speed: | 10 to 1700 rpm |
Maximum Friction Torque: | 5 Nm |
Load Actuation: | Pneumatic Bellows |
Test Configurations: | Four ball wear (ASTM D2266) Thrust washer (ASTM D3702) Three pin on disc (ASTM G99) Spiral orbit ball on disc (ASTM F2661) |
Motor Type: | Servo with encoder feedback |
Roughing Pump: | Rotary vane pump |
Vacuum Pump: | Turbomolecular |
Interface: | Phoenix Tribology USB micro-controller interface |
Software: | COMPEND 2020 |
Test Chamber
Vacuum: | Down to 100 Picobar (10-5 Pa) |
|---|---|
Environment: | Air, inert gas or vacuum |
Material: | 304 stainless steel |
Surface Treatment: | Glass bead blasted |
Viewports: | Fused Silica |
Electrical Feedthrough: | 1 kVolts , 15 Ampere |
Coaxial Feedthrough: | BNC through Flange |
Thermocouple: | Type K through Flange |
Vacuum Transducer: | Cold Cathode and Pirani |
Leak rate: | < 10-7 mbar l/s |
Rotary Feedthrough: | Pressure up to 10-7 Pa |
Rotary Feedthrough: | Temperature up to 80ºC |
Computer Controlled Parameters | Rotational Speed Test Duration Load |
Manually Controlled Parameters | Operating Pressure |
Recorded Parameters – Sliding Friction & Wear | Load Rotational Speed Friction Torque Temperature Operating Pressure Electrical Contact Potential Number of Revolutions Test Duration Sliding Speed Sliding Distance |
Recorded Parameters – Rolling Contact Fatigue | Load Rotational Speed Scrub Force Temperature Operating Pressure Electrical Contact Potential Number of Revolutions Number of Ball Orbits Test Duration |
Services
Electricity: 220/240V, single phase, 50 Hz, 3 kW
110/120 V, single phase, 60 Hz, 3 kW
