전기자동차 베어링의 전기 침식 마모 시험기

ELECTRIC EROSION TEST

전기자동차 베어링의 전기 침식 마모 시험기, 전식 마모 시험 장치, Electric Erosion, 구름접촉피로, Rolling Contact Fatigue Test, Pitting Test. Multi Station Tests. 3~6개의 동시시험장치.

전기자동차 베어링의 전기 침식 마모 시험기

모델 RCF 2, Rolling Contact Fatigue Rig(=RCF Tester)

Axial 방향 하중 적용 구름접촉피로 시험기

EV 전기자동차용 전기침식, 전식마멸(=Electric Erosion) 시험 장치

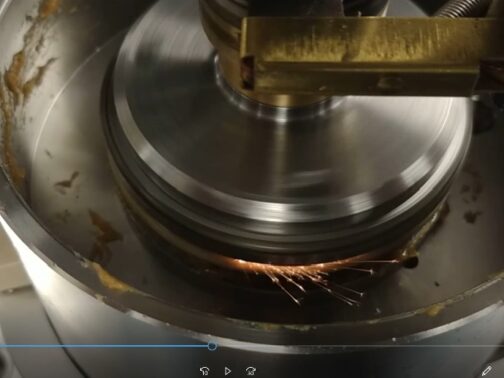

베어링 시험 중 윤활막이 얇아져서 베어링 상하부가 접촉을

일으키면서 통전 현상 발생으로 SPARK(스파크) 발생

오른 쪽 이미지는 베어링 시험 후 표면 관측에서 흰색 알갱이와 같은

전기적 침식 마모 혹은 전식마모(=Electric Erosion) 현상을 확인 가능 하다


모델 TE92로 시험한 전기자동차의 베어링 전기누설 관련 전기 침식 마모 시험 동영상 입니다.


연관된 시험기 리스트

고속 베어링 마찰력 측정기–최대 40,000rpm 시험기
베어링 소재의 구름접촉피로 시험기
베어링 소재의 초고속 구름접촉 피로 시험기
전기자동차 베어링의 전기 침식 마모 시험기, 전식 마모 시험 장치, Electric Erosion, 구름접촉피로, Rolling Contact Fatigue Test, Pitting Test. Multi Station Tests. 3~6개의 동시시험장치.
전기자동차 베어링의 전기 침식 마모 시험기


(=구름접촉 베어링의 구름접촉피로도 시험기)

——>Max 10,000N and Max 40,000N, Max 10,000RPM

추가 옵션 MAX 30,000~40,000 rpm 시험 가능

—>EV 전기자동차용 모터의 초고속 베어링 시험 장치 최대 40,000rpm 시험용 곧 출시 됩니다.

—>초저온 영하 -200℃ 베어링 토크 측정기 출시 준비 중 입니다. !!

Rolling Four Ball Adapter

Cone on Angular Contact Bearing Adapter

Thrust Ball Bearing on Disc Adapter

Back-to-back Angular Contact Bearing Adapter

RCF 2 ROLLING CONTACT FATIGUE MACHINE

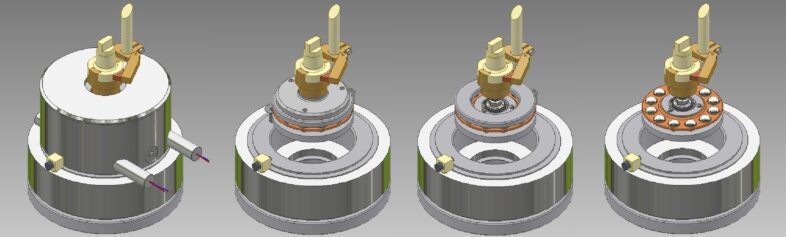

EDM(Electrical Discharge Machining–> 전기적 침식 마모 혹은 전식마모(Electric Erosion) 현상 시험분석용 시험홀더들

Keywords:(시험분석 요소)

  • pitting(모재 표면에 생긴 부식에 의한 점 형태의 자국. 또, 기어의 치면(齒面) 등이 높은 접촉 압력의 반복에 의하여 국부적 피로 때문에 침식되는 현상.)
  • rolling contact fatigue(구름 선 접촉 피로 시험–>수명 계산식의 기초로 되는 플레킹과, 표면 결함 속에 윤활 기름이 유체 역학적으로 침입한 결과 발생하는 균열이 원인으로 되어 생기는 피팅이 대표 예이다.)
  • rolling element bearing test(구름 베어링 시험–>헤르쯔응력,HERTZ )


Description:

The RCF 2 Rolling Contact Fatigue Machine is a cut-down version of the TE 92HS Microprocessor Controlled Rotary Tribometer, the key change being the removal of the friction torque measuring arrangement and the clutch assembly used for low speed sliding four ball tests. The RCF 2 machine is used only in the high speed configuration with rolling contact test adapters.

Various well established test adapters are available, including the standard rolling four ball test adapter, typically used for generating surface propagated micro-pitting failures, a cone on angular contact bearing adapter and a thrust ball bearing on disc adapter, which produces rolling with contact spin. All these rely on the high speed test spindle bearings to react the applied axial load. In addition to these, modifications have been made to the spindle and housing to allow back-to-back testing of angular contact bearings. This arrangement results in no axial load on the test spindle, allowing loads up to 40 kN to be applied to the test samples.

Control and Data Acquisition:

The RCF 2 has PC based sequence programmable control and data acquisition. This is provided by an integrated Serial Link Interface Module and COMPEND 2000 software running on a host PC, operating under Windows. Data is stored to hard disc in standard spread sheet compatible file formats (.csv or .tsv).

Tests are defined by a sequence of steps, each step containing set-point, data recording rates and alarm level information. Set-points may be adjusted by step change or ramp. The test sequence is followed unless interrupted by the operator or an alarm. Set-points may also be adjusted manually using on screen toggles.

RCF 2/10 Standard Load Actuator Assembly:

The operating envelope of the machine is based on the L10 and L30 lives of the spindle bearings. The standard load actuator assembly provides a loading range of 200 to 10,000 N. The permissible loads and speeds for tests where the machine spindle reacts the axial load, are as follows:

10 kN

1,840 rpm

5 kN

3,000 rpm

3 kN

10,000 rpm

RCF 2/40 High Load Actuator Assembly:

The high load actuator assembly is used in conjunction with the back-to-back bearing assembly and allows loads of up to 40 kN to be applied to the test bearings and a maximum rotational speed of 10,000 rpm to be achieved.

Computer Controlled Parameters:

Motor speedApplied loadTest fluid temperatureTest duration

Manually Controlled Parameters:

Test fuid flow rate

Measured Parameters:

Measured ParametersMotor speedApplied loadLubricant inlet temperatureRace-way TemperaturesVibration sensor output

Specification:

Rotational Speed:

100 to 10,000 rpm

Standard Load Range:

10,000 N

Back-to-back Load Range:

40,000 N

Spindle Bearing Load:

10,000 N @ 3,000 rpm

4,000 N @ 10,000 rpm

Motor:

1.5 kW ac @ 1500 rpm

50% overload available for 30 seconds

Heated Block Power:

550 W

Temperature Sensor:

k-type thermocouple

Vibration Sensor:

piezo-electric type with adjustable threshold sensitivity and cut-off time

Interface:

SUPERSLIM Serial Link Interface Module

Software:

COMPEND 2000

Services:

Electricity:

220/240 V, single phase, 50/60 Hz, 3 kW

Clean, dry air:

4 cfm at 8 bar (120 p
