모델 TRACEiT®
Measuring area: 5 x 5 mm
Measuring Z-axis:2mm
Resolution z-axis: 2.5 μm
Resolution x/y-axis: 3.0 μm
Data points x/y-axis: 1500
export files: .txt .bmp
HDD: 120GB
RAM: 1 GB
Processor: Intel Core 2 Duo 2 Ghz, 4MB
Display: 12.1″, 1280 x 800 WXGA
power supply: 100 – 240 V, 65 W
system weight: 5.0 kg
Basic Functions
The new patented TRACEiT® system is a fast, mobile, non-contact surface profilometer. It enables highlyprecise 3D-topography analysis and measurement of roughness values Ra opt, Rq opt and Rz opt. TRACEiT® is the first instrument in the market that analyses, documents and evaluates the visual appearance and thus the visual impression to the human eye.

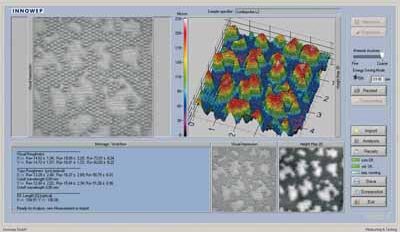

3D-topography
Advantages:
- Mobile
- Fast, simple, and highly precise
- Reproducible and able to be calibrated
- Visual impression and topography
- Documentation, analysis, and values
- Wear and failure analysis

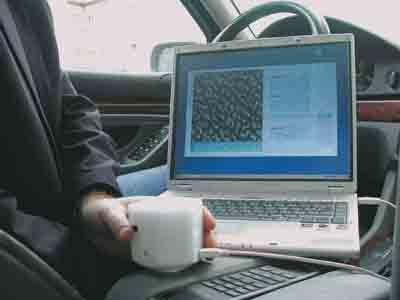

The measurement system consists of a sensing head connected to a modified notebook. All operations are via interaction of sensing head and notebook, where data storage, evaluation and analysis take place in. Data can be exported to other programs for further analysis. The system is independent of external power supply and other controls and allows measurements at almost any location.

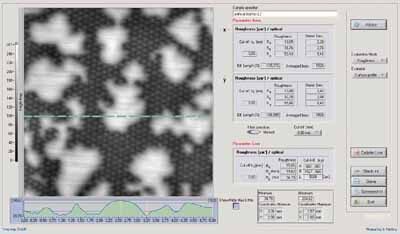

Topography
Surface contact area
Visual impression
Option

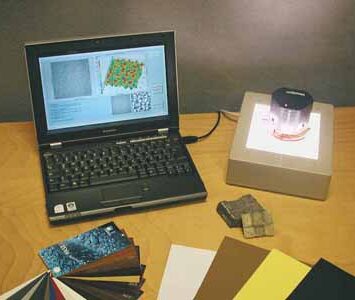

Transmitted light unit for the local density characterisation of translucent materials like thin films, papers, textiles, …
The additional TRACEiT® module enables the direct correlation of the surface topography, visual impression and the density distribution (e.g. the cloudiness of paper or thin materials) of exactly the same area.
The obtained density distribution profile can be evaluated by the TRACEiT® software regarding to the density / intensity variation and distribution.
